产品型号：CSZX-12G SDI视频转换器
|
12G SDI转HDMI |
||
|
视频输入接口 |

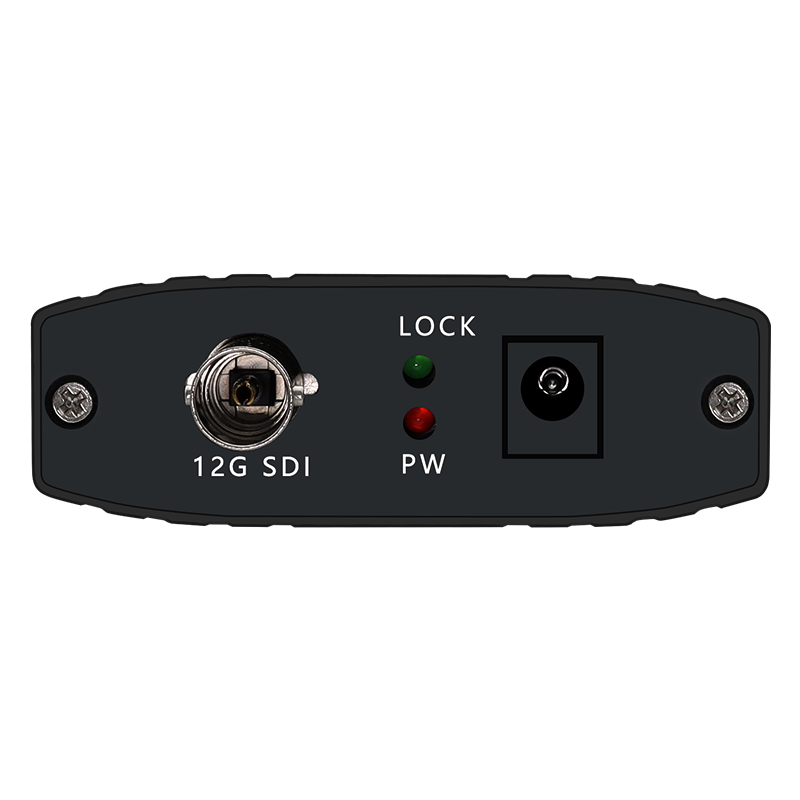

1路 12G SDI视频输入
|
|
|
音频 |
1路12GSDI嵌入音频 |
|
|
视频输出 |

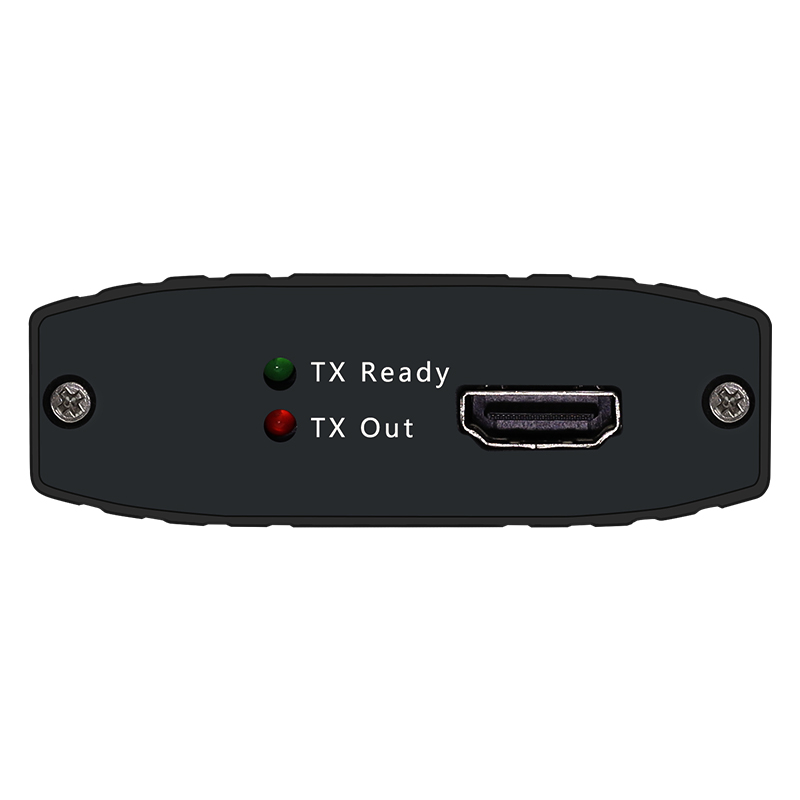

1路HDMI2.0 输出 |
|
|
标准 |
||
|
视频输入格式 |
HD-SDI3G-SDI,6G-SDI,12G-SDI |
|
|
输入分辨率 |
||
|
HD |
1280X720 |
P25,P29.97,P30,P50,P59.94,P60 |
|
|
1920X1080 |
P23.98,P24,P25,P29.97,P30,SF25,SF29.97,SF30, |
|
|
2048X1080 |
P23.98,P24,P29.97,P30 |
|
3GlevelA |
1920X1080 |
P47.95,P48,P50,P59.94,P60 |
|
|
2048X1080 |
P47.95,P48,P50,P59.94,P60 |
|
3GlevelB DL |
1920X1080 |
P47.95,P48,P50,P59.94,P60,SF29.97,SF30,i50,i60 |
|
|
2048X1080 |
P47.97,P48,P50,P59.94,P60,SF29.97,SF30,i59.94,i60 |
|
3GlevelB DS |
1920X1080 |
SF23.98,SF24,SF25,SF29.97,SF30,i47.95,i48,i50,i59.94,i60 |
|
|
2048X1080 |
SF23.98,SF24,SF25,SF29.97,SF30,i47.95,i48,i50,i59.94,i60 |
|
6G |
3840X2160 |
P25,P29.97,P30 |
|
|
4096X2160 |
P25,P29.97,P30 |
|
12G |
3840*2160 |
P50,P59.94,P60 |
|
|
4096*2160 |
P50,P59.94,P60 |
